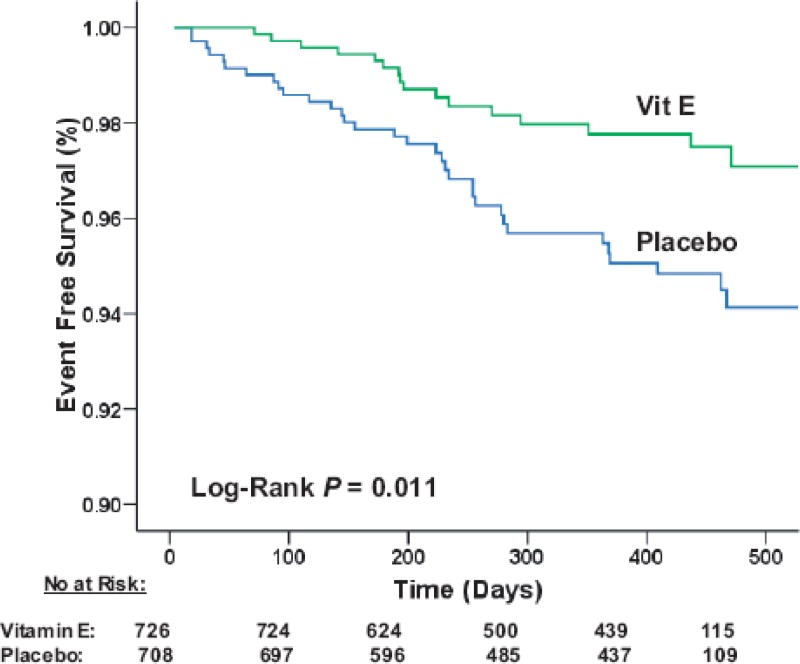

Kaplan-Meier plot of the composite end point in Hp 2-2 DM individuals allocated to vitamin E or placebo. Events are CV death, MI, or stroke. There were 726 Hp 2-2 individuals allocated to vitamin E and 708 Hp 2-2 individuals allocated to placebo. As a reflection of the 18-month window during which participants entered the study (time 0 being the day of Hp typing) and the early termination of the study not all participants were in the study for the same duration. This is reflected in the abscissa where the number of individuals in the study (the number at risk) for a given duration is provided. There were a total of 16 patients (2.2%) who had events in the vitamin E group and 33 patients who had events in the placebo group (4.7%). There was a significant decrease in the composite end point in the vitamin E group compared with the placebo group (Hazard Ratio 0–47 [95% Confidence Interval 0.27 to 0.82], P=0.01 by log-rank). Figure included with permission from American Heart Association. (Milman et al.¹⁹).
