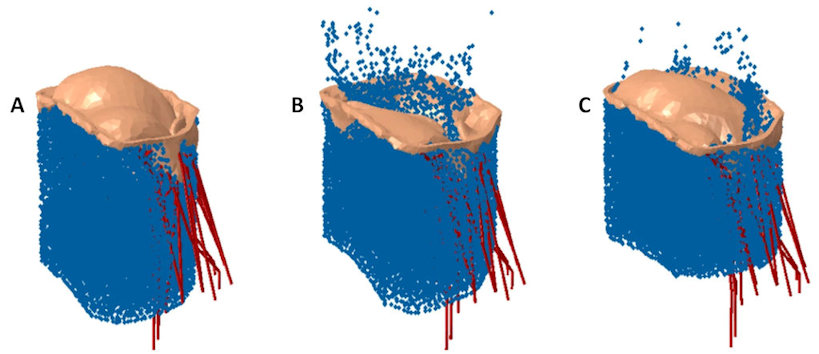

Figure 5. Comparison of Calculated Leakage in the Mitral Valve
A: Healthy mitral valve. B: Regurgitating mitral valve. C: Regurgitating mitral valve post-MitraClip shows significant leakage reduction. Adapted from Figure 5 of Kamakoti et al.122 [CC BY 4.0].
